    385-515m3/H Stainless Steel Chemical Centrifugal Pump Multistage 380V 400V

    Ask Lasest Price
    Brand Name : SANCHANG
    Model Number : MD450-95X9P
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 300pcs/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    385-515m3/H Stainless Steel Chemical Centrifugal Pump Multistage 380V 400V

    Horizontal Multistage Ring Section Stainless Steel Chemical Centrifugal Pump MD450-95X9P


    Description

    Self-Balancing type Horizontal Multistage Ring Section Stainless Steel Chemical Centrifugal Pump is specially design and constructed with corrosive-resistance material for the wet parts. With symmetrically arranged impeller rotor components, axial forces generated by all levels of symmetrical impellers forces offset each other and automatic balancing of huge axial thrust within pump cavity can be realized without the balance disc structure. It is designed to remove the mechanical balance drum, balance disc, balance socket and similar part, but achieve the balancing function by reverse circulation water pipe.

    Such external bypass piping is designed for water flowing into the end of the pump from the suction side, and then reversely flow back to the discharge section in the middle, which makes the water flowing from both sides of the discharge section.
    It will balance the axial thrust caused by the high pressure impeller from both sides and escape the mechanical wears out as well as overloaded axial force of the traditional multistage pump, and ensure the stability and endurability of the pumpset.

    The Chemical Centrifugal Pumps are indispensable to chemical industrial projects and oil-similar liquid handling facilities. Sanchang has performed field tests in various industrial chemical projects and marine construction projects under severe conditions over many years, in collaboration with general contractors, and applied the obtained know-how to developing corrosive-resistant pumps.


    This material is made by specially treating chromium cast iron. Because its electric potential is slightly lower than that of the shaft, the impeller corrodes gradually, which helps to prevent the shaft from corroding. The impeller needs to be replaced every few years to 10 years, depending on operating conditions. However, the impeller costs far less than the shaft to replace. All the wetted parts of this pump are made of titanium and resin, which provides the highest corrosion resistance to corrosive liquid.


    Application

    Chemical Centrifugal Pumps for general Industrial Purposes. The types of chemicals that can be pumped by our pumps includes but is not limited to the following:

    * Sulphuric acid pumping
    * Nitric acid pumping
    * Hydrofluoric acid pumping
    * Oil liquid pumping
    * Food & Juice industry
    * Salt industry

    * Brine handling

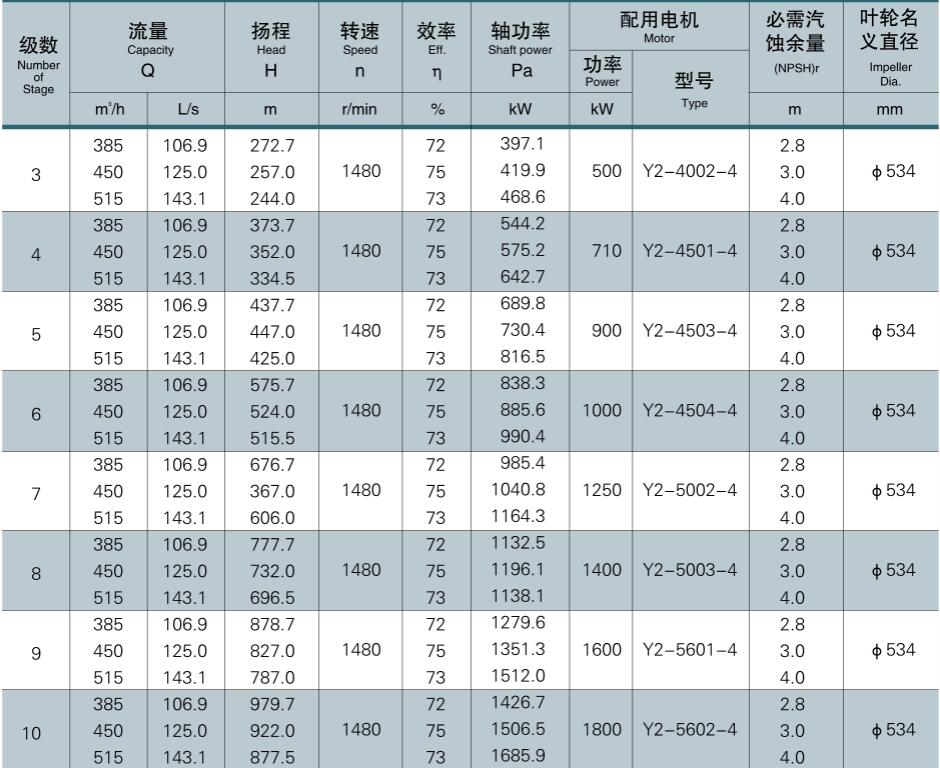

    Parameters

    Flow Capacity385-515 m3/hDelivery Head244-979 m
    Inlet/Outlet Dia.DN250/DN200 mmWorking Pressure≤ 14.685 MPa
    Liquid Temperature0 - 80 ℃Driven ByElectric Motor / Diesel Engine
    Seal TypeMechanical seal / Gland packingLiquidClean water or similar
    Material of ConstructionCast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205


    Main Parts Configuration
    The Stainless Steel Chemical Centrifugal Pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
    Parts NameClean WaterSewageHot WaterCorrosive LiquidOil Liquid
    Pump BodyCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    ShaftCast IronS.S420S.S420/42CrMoS.S630S.S420/40Cr
    Shaft SleeveCarbon SteelS.S420S.S304S.S316/S.S630/S.S2205S.S304/S.S316
    ImpellerCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    Wearing RingCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    BearingChina Make/NSK/SKF/Customized
    SealsMechanical Seals/Gland Packing Seals
