Horizontal End Suction Centrifugal Pump IR100-65-315A Series for Hot Water

The IR series single stage end suction centrifugal pump could be used to transfer clean water, sewage water, hot water and similar liquid. The pump is constructed with single impeller, horizontal installed, radial split volute casing with foot support and single entry impeller, end suction, vertical discharge.

The IR series single stage end suction centrifugal pump is specially designed for hot water, it is the most cost-effective solution for hot water pumping applications. It is widely used in varied kinds of hot water supply, hot water circulation, hot water boosting service, heating factory, power plant cooling, fire fighting, etc.

Base-Mounted End Suction Pumps provide quiet, dependable power plus hydraulic performance and dimensional characteristics that meet the very latest standards. The improved bearing frame design features sealed-for-life bearings that meet all industry requirements for a minimum working life of 8,000 hours, and optional, re-grease able bearings are also available. An easy-to-replace, slip-on shaft sleeve facilitates seal maintenance in the field and lowers maintenance costs.The exclusive dry shaft design protects the pump shaft by eliminating contact with the circulating fluid, so corrosion-resistant shaft materials are generally not required. IR Series Base-Mounted End Suction Pumps also feature flush seal line taps, allowing the installation of a filter to protect the seal from non-condensable particles present in open systems. In addition, pressure tappings on suction and discharge connections are provided as a standard feature.

Main Performance Data

Flow: 30 - 120 m3/h

Delivery Head: 23 - 133m

Inlet/Outlet Dia.: DN100/65mm

Working Pressure: ≤ 1.5Mpa

Solid Particle: ≤ 80mg/L

Liquid Temp.: 0℃ - 100℃

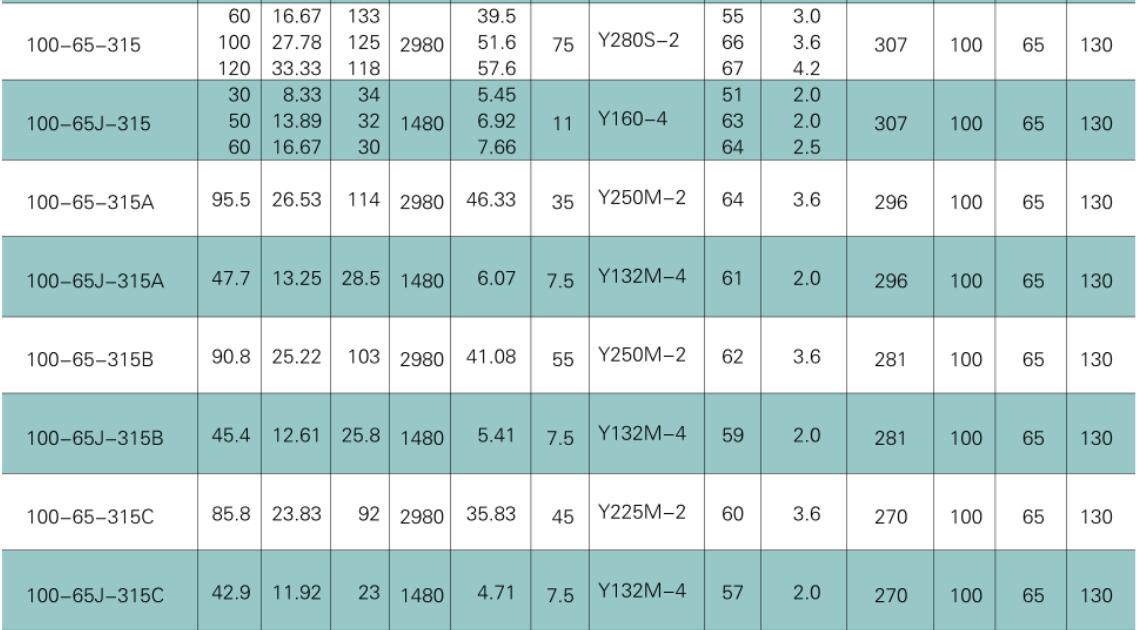

Performance Data of IH100-65-315

Model Instruction

E.G.: IS/IR/IY/IH100-80-160A

IS: Single stage end suction pump (for clean water)

IR: Single stage end suction pump (for hot water)

IY: Single stage end suction pump (for oil liquid)

IH: Single stage end suction pump (for corrosive liquid)

100: Inlet diameter is 100mm

80: Outlet diameter is 80mm

160: Rate impeller diameter is 160mm

A(B,C....): Impeller code

Applications

Industrial water supply and discharge,

Hot water circulation, heating supply system,

Power plant heating re-circulation & re-cycling,

Food, wine, drink, drug industry,

Clean & Hot water transferring,

Chemical liquid transferring,

Sea water desalination & transferring,

Factory & residential drink water supply,

Fibre processing industry, Paper & pulp industry

Sugar industry, Heading & Air conditioning,

Enviromental protection engineering.

Main Parts Configuration

The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:

Parts Name	Clean Water	Sewage Water	Hot Water	Oil Liquid
Pump Body	Cast Iron	Ductile Iron	Cast Steel/S.S304	S.S304
Shaft	Carbon Steel	40Cr	S.S420/S.S304	S.S304
Shaft Sleeve	Carbon Steel	40Cr	S.S420/S.S304	S.S304
Impeller	Cast Iron	Ductile Iron	Cast Steel/S.S304	S.S304
Wearing Ring	Cast Iron	Ductile Iron	Cast Steel/S.S304	S.S304
Bearing	China Make/NSK/SKF
Seals	PTFE Packing Seals / Mechanical Seals
