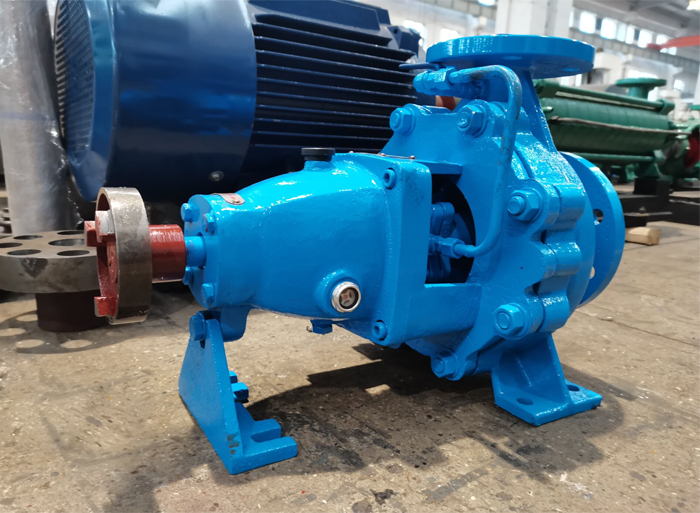

Horizontal End Suction Centrifugal Pump IS80-50-200 (Cast Iron/S.S304/S.S316 )

The IS series single stage end suction centrifugal pump is the most cost-effective solution for most every day pumping applications. End-suction pumps are available from dozens of manufacturers, in a wide range of materials of construction, and offered as both off-the-shelf and

custom-engineered products.

The highly efficient end suction pump is one of the simplest types of centrifugal pump that features motor slide rails and a back pull out design allowing for ready access and ease of maintenance. It’s a precision-made pump suitable for electric/diesel drives, designed to withhold temperatures of up to 105 deg.C.

Our Horizontal End Suction Centrifugal Pump is designed around a modular concept which allows the provision of multiple hydraulics with a small number of Power Frames. It could be manufactured according to ANSI, ISO standards. In addition, these Power Frames are completely interchangeable with models of other common ANSI pump manufacturers.

All the wet part use S.S304 or S.S316, which ensure the corrosive-proof while the pump transferring corrosive liquid, it is wide used in drink water supply, jucie or liquor transferring, cooling water boosting, air conditioning system, petrochemical liquid handling, etc.

Features

Horizontal, overhung, single stage, end suction
Foot mounted, back pull-out design for ease of maintenance
Dimensional interchangeability with most common ANSI/ASME B73.1 pump manufacturers
Open impeller design allows handling of solids in suspension. The impellers are locked onto the shaft by threads and sealed with an O-ring
External impeller adjustment sets impeller quickly and accurately without the need for special tools

Main Performance Data

Flow: 120 - 240 m3/h

Delivery Head: 38 - 52m

Inlet/Outlet Dia.: 150/125mm

Working Pressure: ≤ 0.8Mpa

Solid Particle: ≤ 80mg/L

Liquid Temp.: 0℃ - 120℃

Model Instruction

E.G.: IS/IR/IY/IH/IHF200-150-400A

IS: Single stage end suction pump (for clean water)

IR: Single stage end suction pump (for hot water)

IY: Single stage end suction pump (for oil liquid)

IH: Single stage end suction pump (for corrosive liquid)

200: Inlet diameter is 100mm

150: Outlet diameter is 80mm

400: Rate impeller diameter is 160mm

A(B,C....): Impeller code

Applications

* Water supply
* Drainage
* Irrigation
* Air conditioning
* Fire fighting
* Condensate circulation
* Cooling services
* General industries
* Water transfer & boosting

Main Parts Configuration

The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:

Parts Name	Clean Water	Drink Water	Hot Water	Corrosive Liquid	Acid Liquid
Pump Body	Cast Iron	S.S304	Cast Steel/S.S304	S.S304/S.S316	Cast Iron + F46
Shaft	Carbon Steel	S.S304	S.S420/S.S304	S.S304/S.S316	S.S420/S.S630
Shaft Sleeve	Carbon Steel	S.S304	S.S420/S.S304	S.S304/S.S316	F46
Impeller	Cast Iron	S.S304	Cast Steel/S.S304	S.S304/S.S316	Cast Iron + F46
Wearing Ring	Cast Iron	S.S304	Cast Steel/S.S304	S.S304/S.S316	F46
Bearing	China Make/NSK/SKF
Seals	Mechanical Seals
