heavy duty Multistage Marine Sea Water Pump Horizontal 460V 96m3/h

    Buy cheap heavy duty Multistage Marine Sea Water Pump Horizontal 460V 96m3/h from wholesalers

    Buy cheap heavy duty Multistage Marine Sea Water Pump Horizontal 460V 96m3/h from wholesalers
    • Buy cheap heavy duty Multistage Marine Sea Water Pump Horizontal 460V 96m3/h from wholesalers

    heavy duty Multistage Marine Sea Water Pump Horizontal 460V 96m3/h

    Ask Lasest Price
    Brand Name : SANCHANG
    Model Number : ZDF120-50X6P
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 300pcs/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    heavy duty Multistage Marine Sea Water Pump Horizontal 460V 96m3/h

    Horizontal Ring Section Multistage Centrifugal Stainless Steel Sea Water Pump ZDF120-100X6P


    Description

    Sea water pumps are indispensable to waterfront development projects and aquaculture facilities. Sanchang has performed field tests in various marine construction projects under severe conditions over many years, in collaboration with general contractors, and applied the obtained know-how to developing seawater-resistant pumps. Sanchang also considers economic efficiency important and, therefore, designs pumps with "as many standardized materials as possible."


    Our Horizontal Ring Section Multistage Centrifugal Stainless Steel Sea Water Pump is a utility-grade, high-pressure, ring section pump with heavy duty, segmental ring, diffuser design. Axial thrust balance device with stacked rotor construction. All wet parts could be customized according to different kinds of chemical property. Galvanic Metal, Stainless Steel, Duplex Stainless Steel, Bronze all could be customized according to clients' requirement.

    Improved design
    Versatile mechanical configuration and a redesigned fire stage suction impeller make it easy to integrate into high pressure applications, with the high suction capabilities needed for rigorous hot water or condensate demands.


    Safe operation
    Protect your people and reduce downtime with built-in safeguards, such as a large self-cleaning seal chamber for solids handling and a variety of variable frequency drive options.


    Energy saving
    High-efficiency hydraulics optimized by computational fluid dynamics calculations reduce life-cycle costs and energy usage.

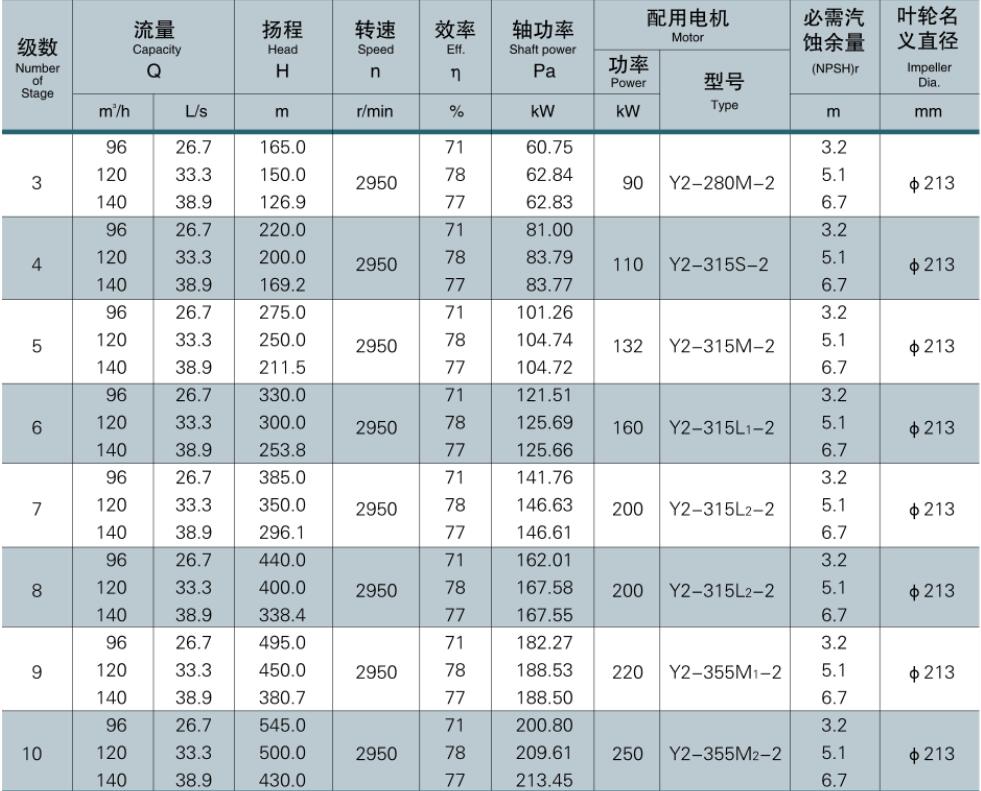

    Parameters

    Flow Capacity96-140 m3/hDelivery Head126-545 m
    Inlet/Outlet Dia.DN125/DN125 mmWorking Pressure≤ 8.175 MPa
    Liquid Temperature0 - 120 ℃Driven ByElectric Motor / Diesel Engine
    Seal TypeMechanical seal / Gland packingLiquidSea Water or similar
    Material of ConstructionCast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205

    Main Parts Configuration
    The Stainless Steel Sea Water Pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
    Parts NameClean WaterSewageHot WaterCorrosive LiquidOil Liquid
    Pump BodyCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    ShaftCast IronS.S420S.S420/42CrMoS.S630S.S420/40Cr
    Shaft SleeveCarbon SteelS.S420S.S304S.S316/S.S630/S.S2205S.S304/S.S316
    ImpellerCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    Wearing RingCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    BearingChina Make/NSK/SKF/Customized
    SealsMechanical Seals/Gland Packing Seals
