1008m3/h Double Suction SS Centrifugal Pump 660V Sea Water Booster Pump

    Buy cheap 1008m3/h Double Suction SS Centrifugal Pump 660V Sea Water Booster Pump from wholesalers

    Buy cheap 1008m3/h Double Suction SS Centrifugal Pump 660V Sea Water Booster Pump from wholesalers
    • Buy cheap 1008m3/h Double Suction SS Centrifugal Pump 660V Sea Water Booster Pump from wholesalers
    • Buy cheap 1008m3/h Double Suction SS Centrifugal Pump 660V Sea Water Booster Pump from wholesalers
    • Buy cheap 1008m3/h Double Suction SS Centrifugal Pump 660V Sea Water Booster Pump from wholesalers

    1008m3/h Double Suction SS Centrifugal Pump 660V Sea Water Booster Pump

    Ask Lasest Price
    Brand Name : SANCHANG
    Model Number : COS200-520
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 300pcs/month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

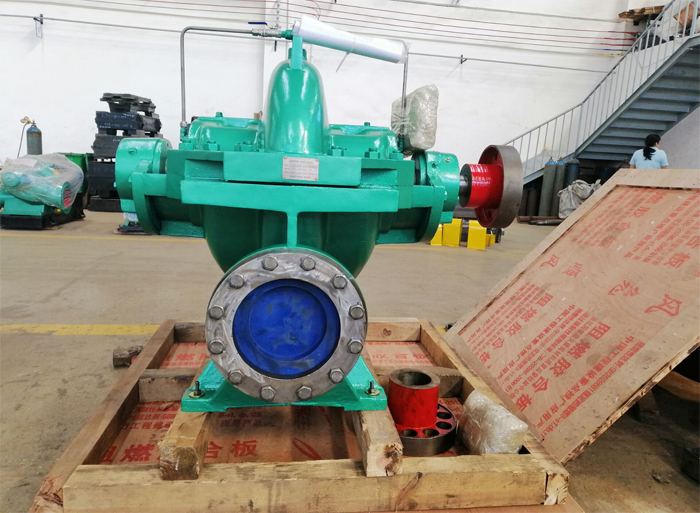

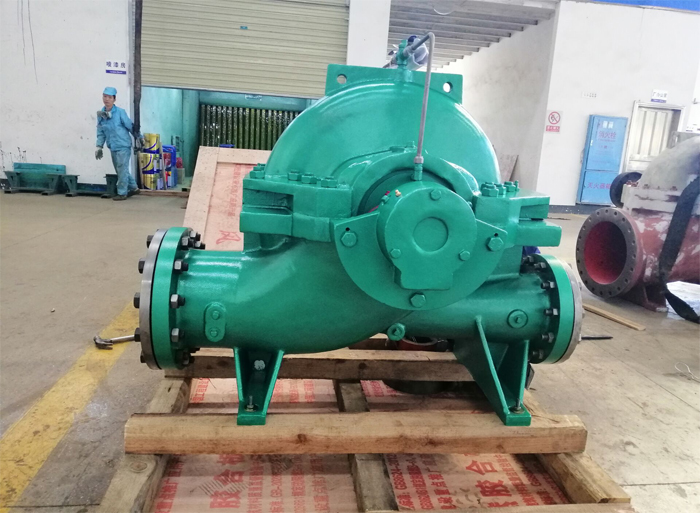

    1008m3/h Double Suction SS Centrifugal Pump 660V Sea Water Booster Pump

    Double Suction Split Case Stainless Steel Water Pump COS200-520


    COS Series pumps are double suction horizontal split case centrifugal pump, they are single-stage, double suction, horizontally mounted, applied for general water supply, booster service, municipal waterworks, condenser cooling, water circulation, industrial service, building service, chemical plant, power plants etc.


    The split case pump is the right choice for a wide range of applications with medium to high flow rates. The optimized design of the split case pump ensures high efficiency and durability.


    The environmental-friendly split case pump has low maintenance requirements and can be produced in a number of materials according to the specific application requirements. Split case pumps are vailable for a wide range of flow rates and pressure heads. Available in horizontal and vertical execution and one or two-stage.


    Split-case pumps are the workhorses of industrial and municipal applications. They are more expensive than end-suction or vertical inline pumps, and not as flexible or adaptable as vertical turbines. However, what they lack in low-cost flexibility they make up for in durability, efficiency, and dependability.


    High efficiency
    The shapes of impeller and pump casings are optimized to achieve the highest possible efficiency for the specific design flow rate and pressure head. Off design characteristics are optimized to give each pump a wide operating range, ensuring that cavitation limits are not exceeded.


    Ease of maintenance
    The pumps are easy to maintain as the upper half can be removed without dismantling pipe connections and driver components so that the alignment is not disturbed. In addition, our service department offers financially attractive service and maintenance contracts, which guarantee that downtime in pumping installations is kept to a minimum.


    Durability
    By using double suction impellers and double volute casings Sanchang supplies pumps with low vibration and noise levels. A double volute reduces radial thrust, resulting in longer service life for bearings and seals.


    Parameters of COS200-520

    Flow Capacity432-1008 m3/hDelivery Head42-103 m
    Inlet/Outlet Dia.250/200 mmWorking Pressure≤ 1.5 MPa
    Liquid Temperature0 - 80 ℃Driven ByElectric Motor / Diesel Engine
    Seal TypeMechanical seal / Gland packingLiquidClean water or similar
    Material of ConstructionCast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.s2205



    Applications
    Water supply and booster stations.
    Water purification processes.
    Industrial washing.
    Fire fighting systems.
    Industrial and public applications.
    Marine and metallurgy sectors, power plants.
    Agricultural irrigation systems.
    General application in refineries


    Main Parts Configuration

    The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:

    Parts NameClean WaterSewageHot WaterCorrosive LiquidOil Liquid
    Pump BodyCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    ShaftCast IronS.S420S.S420/42CrMoS.S630S.S420/40Cr
    Shaft SleeveCarbon SteelS.S420S.S304S.S316/S.S630/S.S2205S.S304/S.S316
    ImpellerCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    Wearing RingCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    BearingChina Make/NSK/SKF/Customized
    SealsMechanical Seals/Gland Packing Seals
