    ZD series 55-85m3/H Multi Stage Impeller Pump / Mining Water Pump

    Ask Lasest Price
    Brand Name : SANCHANG
    Model Number : ZDF25-50X8P
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 300pcs/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    ZD series 55-85m3/H Multi Stage Impeller Pump / Mining Water Pump

    Horizontal Ring Section Self-Balancing Multistage Centrifugal Water Pump ZDF25-50X8P

    Description
    ZD series self-balancing multistage ring section centrifugal water pump is designed to remove the mechanical balance drum, balance disc, balance socket and similar part, but achieve the balancing function by reverse circulation water pipe. Such external bypass piping is designed for water flowing into the end of the pump from the suction side, and then reversely flow back to the discharge section in the middle, which makes the water flowing from both sides of the discharge section. It will balance the axial thrust caused by the high pressure impeller from both sides and escape the mechanical wears out as well as overloaded axial force of the traditional multistage pump, and ensure the stability and endurability of the pumpset.

    Design Features:

    * With symmetrically arranged impeller rotor components, axial forces generated by all levels of symmetrical impellers forces offset each other and automatic balancing of huge axial thrust within pump cavity can be realized without the balance disc structure.


    * Using advanced hydraulic model, independent R&D enery efficient products, Good centering of impeller and guide vane channel and efficiency will not significantly drop as balancing disc wears and rotor components move forward. No leakage of balancing water reduces loss of volume and improves pump efficiency and pump efficiency is on average 2-5% higher than normal pumps.


    * By canceling easy-failing balancing disc, pump reliability is greatly improved, maintenance frequency and maintenance cost are reduced.


    Applications

    * Boosting in General Industries of chemical process
    * Boiler water feeding
    * Food & beverage
    * Sewage Treatment Plant
    * Sea Water Desalination
    * Clear and lightly contaminated liquids
    * Commercial water supply, High building water supply
    * Mining water discharge
    * Supper long distance water transferring

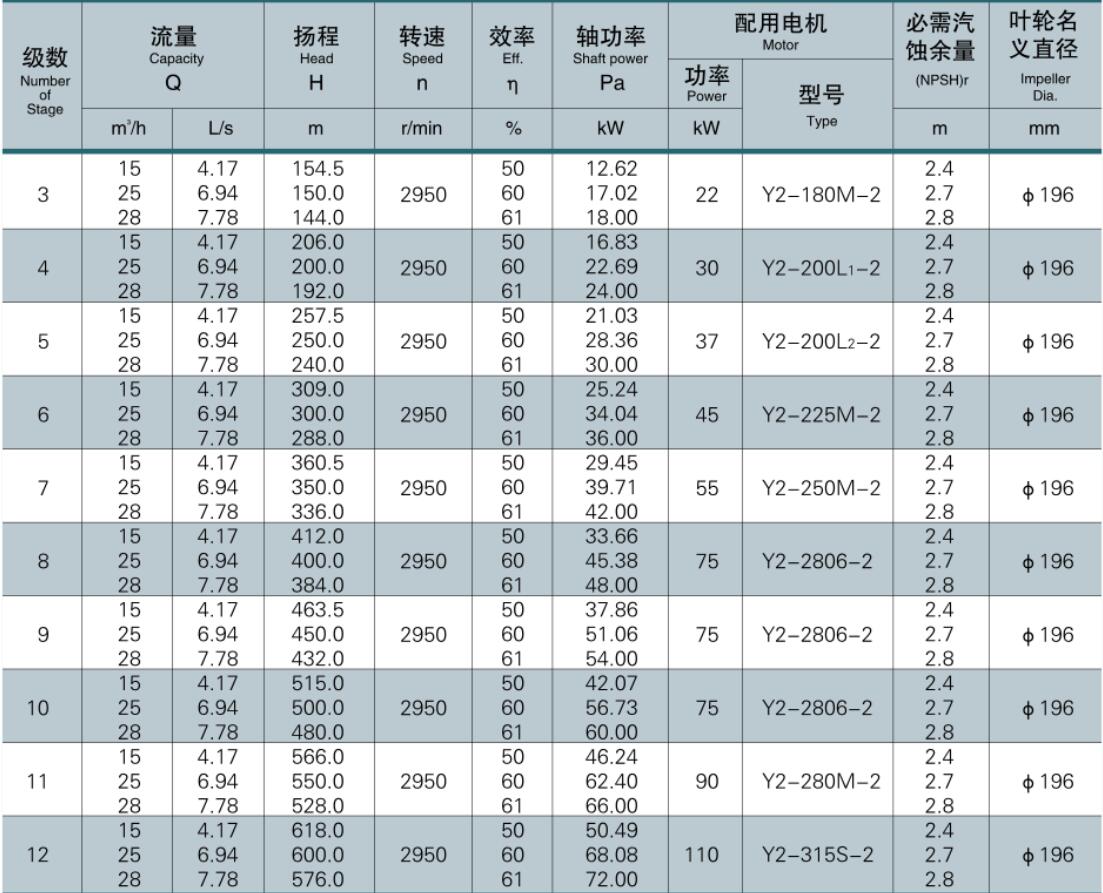

    Parameters

    Flow Capacity15-28m3/hDelivery Head144-618 m
    Inlet/Outlet Dia.50mm/50 mmWorking Pressure≤ 9.27MPa
    Liquid Temperature0 - 120 ℃Driven ByElectric Motor / Diesel Engine
    Seal TypeMechanical seal / Gland packingLiquidClean water or similar
    Material of ConstructionCast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205


    Main Parts Configuration
    The pump could transfer different kinds of liquid by customized wet parts, here followed our option of main parts:
    * Pump Body: Cast Iron, Ductile Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205
    * Shaft: C.S45#, S.S420, 40Cr, 42CrMo, S.S630, Duplex S.S2205
    * Shaft Sleeve: C.S45#, S.S420, S.S304, S.S316, S.S630, Duplex S.S2205
    * Impeller: Cast Iron, Ductile Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205, Bronze
    * Wearing Ring: Cast Iron, Ductile Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205, Bronze
    * Bearing: China Make/NSK/SKF/Customized
    * Seals: Mechanical Seals/Gland Packing Seals
