    Diesel Engine Driven Heavy Duty 85m3/H SS Centrifugal Pump 440V 460V 690V

    Ask Lasest Price
    Brand Name : SANCHANG
    Model Number : ZDF85-67X6P
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 300pcs/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Diesel Engine Driven Heavy Duty 85m3/H SS Centrifugal Pump 440V 460V 690V

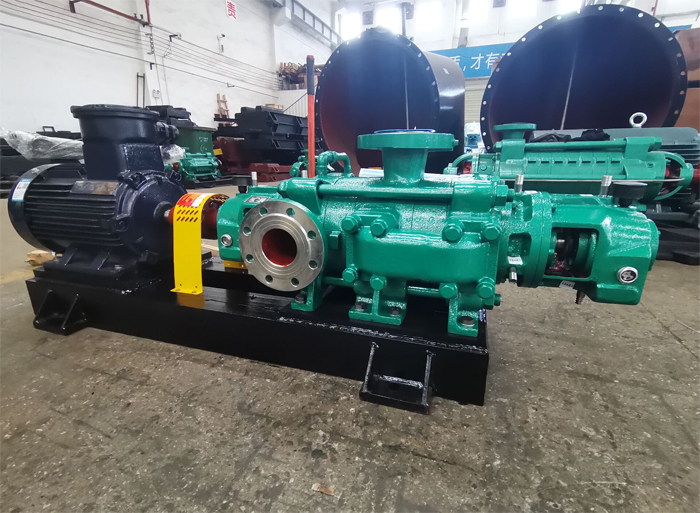

    Horizontal Ring Section Self-Balancing Multistage Centrifugal Stainless Steel Water Pump DF25-30X4P
    Description
    DF series self-balancing multistage ring section centrifugal stainless steel water pump is designed to remove the mechanical balance drum, balance disc, balance socket and similar part, but achieve the balancing function by reverse circulation water pipe. Such external bypass piping is designed for water flowing into the end of the pump from the suction side, and then reversely flow back to the discharge section in the middle, which makes the water flowing from both sides of the discharge section. It will balance the axial thrust caused by the high pressure impeller from both sides and escape the mechanical wears out as well as overloaded axial force of the traditional multistage pump, and ensure the stability and endurability of the pumpset.
    It is designed to transfer the corrosive liquid like acid liquid, sea water, mining water with corrosiveness , and the pump can handling clean water, hot water, boiler feed water, corrosive liquids, oils, and abrasive medium by use different materials of construction, proper seal type, and external seal flushing plans.

    Improved design
    Versatile mechanical configuration and a redesigned fire stage suction impeller make it easy to integrate into high pressure applications, with the high suction capabilities needed for rigorous hot water or condensate demands.


    Safe operation
    Protect your people and reduce downtime with built-in safeguards, such as a large self-cleaning seal chamber for solids handling and a variety of variable frequency drive options.


    Energy saving
    High-efficiency hydraulics optimized by computational fluid dynamics calculations reduce life-cycle costs and energy usage.


    Reduced wear
    Elastically supported plain bearings made from tungsten carbide resist extreme vibrations and shocks. A bypass water reverse pipe system reduces axial force rised by impellers.


    Easy maintenance
    Drive side bearing, mechanical seal and balancing drum sub-assembly are all easily accessible without removing pump from the piping system, and use common parts across the range to simplify spare parts arrangement.


    Material of Wet Parts

    Case & Cover: S.S304, S.S316, Duplex S.S2205

    Impeller & Wear Ring: S.S304, S.S316, Duplex S.S2205

    Shaft: S.S420, S.S630, Duplex S.S2205

    Seal: Mechanical Seal / Packing Seal



    Applications

    * Boosting in General Industries of chemical process
    * Boiler water feeding
    * Food & beverage
    * Sewage Treatment Plant
    * Power Plant
    * Sea Water Desalination
    * Clear and lightly contaminated liquids
    * Commercial water supply, High building water supply
    * Mining water discharge
    * Supper long distance water transferring

    Parameters

    Flow Capacity55-85m3/hDelivery Head183-740 m
    Inlet/Outlet Dia.150mm/150 mmWorking Pressure≤ 11.1MPa
    Liquid Temperature0 - 120 ℃Driven ByElectric Motor / Diesel Engine
    Seal TypeMechanical seal / Gland packingLiquidClean water or similar
    Material of ConstructionCast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205
