Horizontal Ring Section Stainless Steel Centrifugal Pump 150-240m3/H DF Series

    Buy cheap Horizontal Ring Section Stainless Steel Centrifugal Pump 150-240m3/H DF Series from wholesalers

    Buy cheap Horizontal Ring Section Stainless Steel Centrifugal Pump 150-240m3/H DF Series from wholesalers
    • Buy cheap Horizontal Ring Section Stainless Steel Centrifugal Pump 150-240m3/H DF Series from wholesalers

    Horizontal Ring Section Stainless Steel Centrifugal Pump 150-240m3/H DF Series

    Ask Lasest Price
    Brand Name : SANCHANG
    Model Number : DF200-125X4P 2950rpm
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 300pcs/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Horizontal Ring Section Stainless Steel Centrifugal Pump 150-240m3/H DF Series

    Description
    DF series Horizontal Ring Section Self-Balancing Multistage Centrifugal Stainless Steel Water Pump is designed to remove the mechanical balance drum, balance disc, balance socket and similar part, but achieve the balancing function by reverse circulation water pipe.
    Such external bypass piping is designed for water flowing into the end of the pump from the suction side, and then reversely flow back to the discharge section in the middle, which makes the water flowing from both sides of the discharge section.
    It will balance the axial thrust caused by the high pressure impeller from both sides and escape the mechanical wears out as well as overloaded axial force of the traditional multistage pump, and ensure the stability and endurability of the pumpset.
    It is designed to transfer the corrosive liquid like acid liquid, sea water, mining water with corrosiveness , and the pump can handling clean water, hot water, boiler feed water, corrosive liquids, oils, and abrasive medium by use different materials of construction, proper seal type, and external seal flushing plans.
    These pumps generate increased pressure as the discharge of one enclosed impeller is routed to the suction of another enclosed impeller within the casing. Enclosed impellers limit the solids handling sizes of these pumps. In addition, and much like their vertical turbine counterparts, the efficiency and effectiveness of horizontal multistage pumps is dictated by the life of the wear rings and thin, multi-vane impellers.

    * Safely handles toxic, noxious, corrosive or high-temperature liquids with increased safety to personnel and the environment.
    * Special high-temperature construction is available to handle up to 800°F.
    * Options for leak detection are available that virtually eliminate any leakage to the environment when handling extremely hazardous chemicals.
    * Suitable for use with edible hot oil fluids.

    * No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.


    Material of Wet Parts

    S.S304, S.S316, Duplex S.S2205


    Applications

    * Boosting in General Industries of chemical process
    * Boiler water feeding
    * Food & beverage
    * Corrosive Sewage Treatment Plant
    * Power Plant Cooling, Heating Factory
    * Sea Water Desalination
    * Clear and lightly contaminated liquids
    * Commercial water supply, High building water supply
    * Chemical Liquid Handling, Oil Liquid Handling
    * Supper long distance water transferring

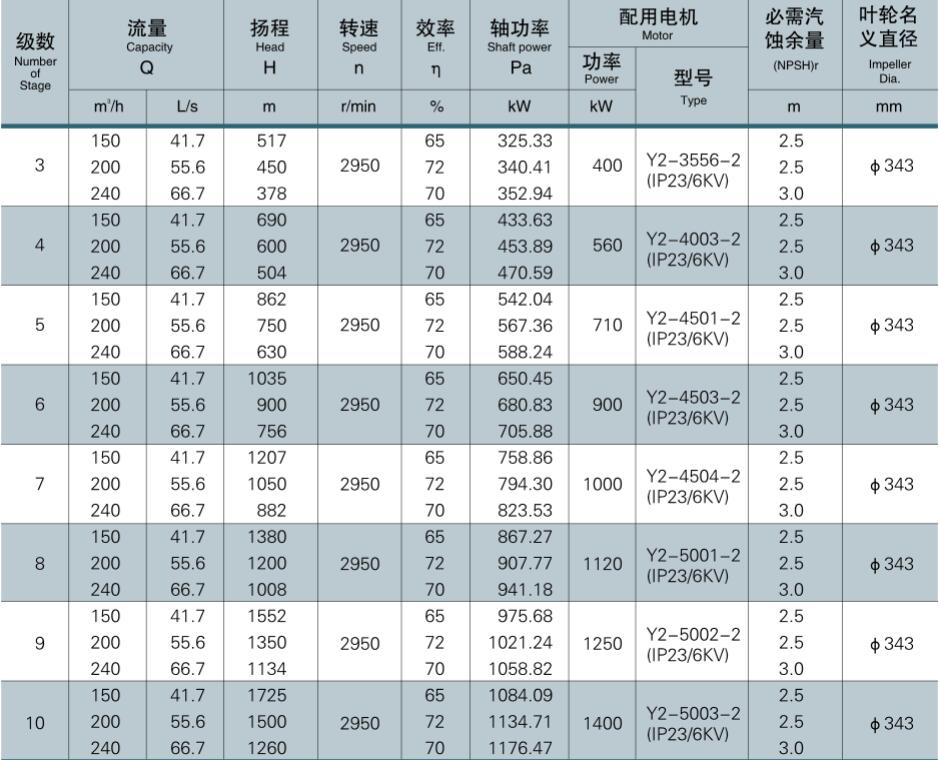

    Parameters

    Flow Capacity150-240m3/hDelivery Head378-1725 m
    Inlet/Outlet Dia.200mm/150 mmWorking Pressure≤ 25.875MPa
    Liquid Temperature0 - 120 ℃Driven ByElectric Motor / Diesel Engine
    Seal TypeMechanical seal / Gland packingLiquidClean water or similar
    Material of ConstructionCast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205
