    Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head

    Ask Lasest Price
    Brand Name : SANCHANG
    Model Number : MD450-60X9P
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 300pcs/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Horizontal Ring Section Mining Water Pump 500m3/H 113-650m head

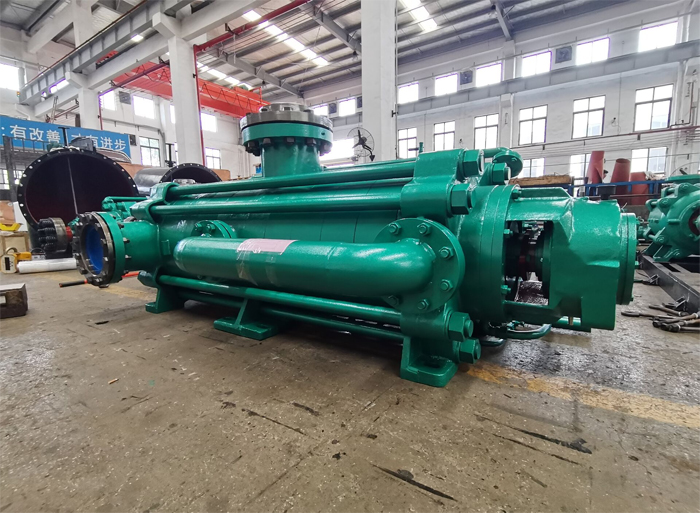

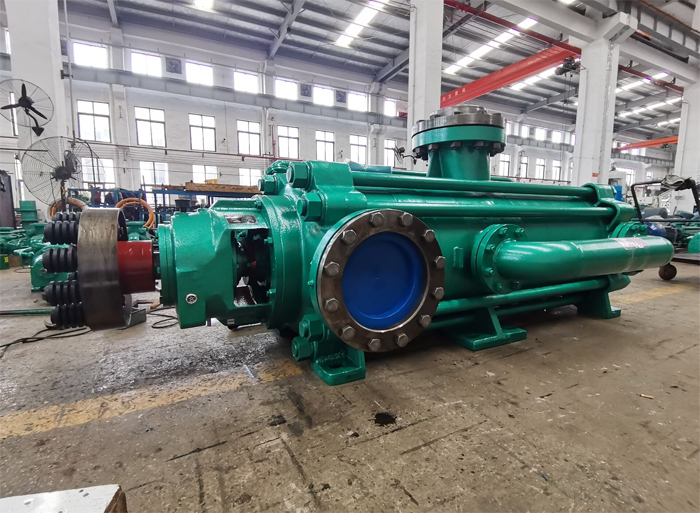

    Horizontal Ring Section Self-Balancing Multistage Centrifugal Mining Water Pump MD450-60X9P
    Description
    ZD series self-balancing multistage ring section centrifugal mining water pump is a innovative product which designed to remove the mechanical balance drum, balance disc, balance socket and related parts, and achieve the balancing function by reverse circulation water pipe.
    The external bypass pipe at the outside of the pump is designed for water re-flushing, it will make the water flowing directly into the end of the pump from the suction side, and then return to the discharge section at the middle of the pump, the axial force will be balanced by water flowing from both sides of the discharge section.
    It will balance the axial thrust caused by the high pressure impeller from both sides and escape the mechanical wears out as well as overloaded axial force of the traditional multistage pump, and ensure the stability and endurability of the pumpset.

    Features

    * 3D design used in the whole design process and CFD analysis and being embodied with knowledge and experience of the fluid experts in Sanchang Pump.
    * Back-to-back impeller stacking to automatically balance the axial hydraulic thrust.
    * Optional inducer stage with fine inducer impeller to allow very low NPSHr.
    * The suction nozzle and discharge nozzle can be horizontal, vertical, down, any position in times of 90 degree.
    * Optional shaft sealing for single mechanical seal, double mechanical seal, cartridge mechanical seal and soft packing meet API 682.
    * Standard design for stuffing box cooling jacket allow the pump to transfer high temperature liquid.
    * Bearing bracket with cooling jacket or finned shape cooled by fan to ensure long bearing life and stable pump working.
    * Bearing lubrication is optional for grease, ring oiled, splashed systems or boosting systems.
    * Bearing type can be rolling element bearing and plain bearing. for heavy duty and high temperature.
    * Full Range Pump to meet vary demand of you designed capacity and head.


    Parameters

    Flow Capacity335-500 m3/hDelivery Head113-650 m
    Inlet/Outlet Dia.250mm/250 mmWorking Pressure≤ 9.75 MPa
    Liquid Temperature0 - 120 ℃Driven ByElectric Motor / Diesel Engine
    Seal TypeMechanical seal / Gland packingLiquidClean water or similar
    Material of ConstructionCast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205

    Main Parts Configuration
    The MD/ZD series self-balancing multistage ring section centrifugal mining water pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation:
    Parts NameClean WaterSewageHot WaterCorrosive LiquidOil Liquid
    Pump BodyCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    ShaftCast IronS.S420S.S420/42CrMoS.S630S.S420/40Cr
    Shaft SleeveCarbon SteelS.S420S.S304S.S316/S.S630/S.S2205S.S304/S.S316
    ImpellerCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    Wearing RingCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    BearingChina Make/NSK/SKF/Customized
    SealsMechanical Seals/Gland Packing Seals

    Applications

    * boosting in General Industries of chemical process
    * boiler water feeding
    * Food & beverage
    * Sewage Treatment Plant
    * Marine & offshore
    * Sea Water Desalination
    * Petrochemical processing
    * Clear liquids
    * Commercial water supply, High building water supply
    * Mining water discharge
    * Supper long distance water transferring

    We offer a variety of service activities:
    * Remote online supporting and diagonosis. Onsite consulting before & after sales.
    * Repair & Maintenance - incidental service visits on location to breakdown repairs and maintenance on a 24-hour contract basis for products made by Sanchang or by any other manufacturer.
    * Original spare parts - we provide stock control of spare parts for groups of pumps (total care maintenance). We are able to respond quickly and flexibly thanks to the availability of our own foundry.
    * Training of our worldwide customers in the field of installation, operation and maintenance.
