    11-75kw Horizontal Multistage Salt Brine Pump Ring Section Pump 50/60Hz

    Ask Lasest Price
    Brand Name : SANCHANG
    Model Number : DF12-50X5
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 300pcs/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    11-75kw Horizontal Multistage Salt Brine Pump Ring Section Pump 50/60Hz

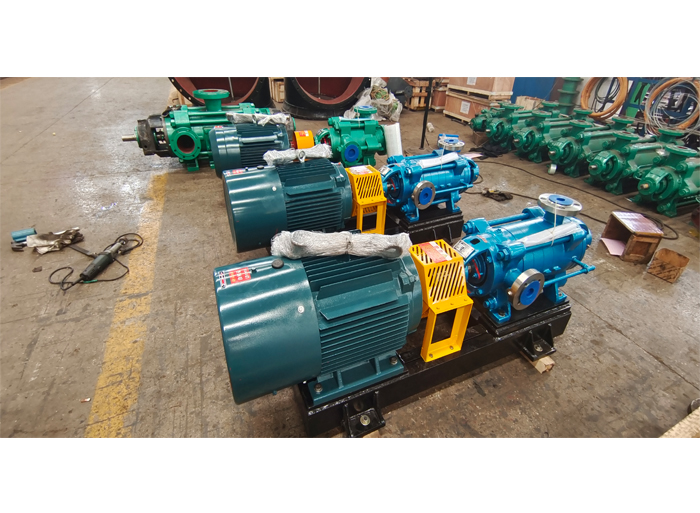

    Horizontal Ring Section Multistage Centrifugal Stainless Steel Water Pump DF12-50X5


    Description

    The D series Multistage Ring Section Centrifugal Stainless Steel Water Pump is a utility-grade, high-pressure, ring section pump with heavy duty, segmental ring, diffuser design. Axial thrust balance device with stacked rotor construction. Suitable for boiler feed pump and high building, long distance water transferring.

    Design Features


    Precision cast impellers

    * smooth surface finish for improved hydraulic efficiency.
    * multiple hydraulic designs for best customer fit.
    * optional wear rings available to restore “as built” clearances.
    * variety of materials available for different services.


    Continuous channel mulitvane diffuser and stage piece

    * eliminates one mating interface.
    * provides additional rigidity for more reliable operation.
    * simplifies maintenance procedures and reduces inventory requirements.
    * smoothly directs the flow from stage to stage more efficiently.
    * eliminates radial loads to assure longer bearing life.

    Wear rings

    * allow restoration of “as built” clearances.
    * protect more expensive parts from wear.
    * casing rings are standard.
    * impeller rings are an option.


    Parameters

    Flow Capacity7.5-15m3/hDelivery Head93-648 m
    Inlet/Outlet Dia.DN50/DN50 mmWorking Pressure≤ 9.72MPa
    Liquid Temperature0 - 80 ℃Driven ByElectric Motor / Diesel Engine
    Seal TypeMechanical seal / Gland packingLiquidClean water or similar
    Material of ConstructionCast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205

    Main Parts Configuration
    The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
    Parts NameClean WaterSewageHot WaterCorrosive LiquidOil Liquid
    Pump BodyCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    ShaftCast IronS.S420S.S420/42CrMoS.S630S.S420/40Cr
    Shaft SleeveCarbon SteelS.S420S.S304S.S316/S.S630/S.S2205S.S304/S.S316
    ImpellerCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    Wearing RingCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    BearingChina Make/NSK/SKF/Customized
    SealsMechanical Seals/Gland Packing Seals
