    28m3/H Multi Stage Impeller Pump 50Hz 60Hz Industrial Water Transfer Pump

    Ask Lasest Price
    Brand Name : SANCHANG
    Model Number : DF25-50X6
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 300pcs/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    28m3/H Multi Stage Impeller Pump 50Hz 60Hz Industrial Water Transfer Pump

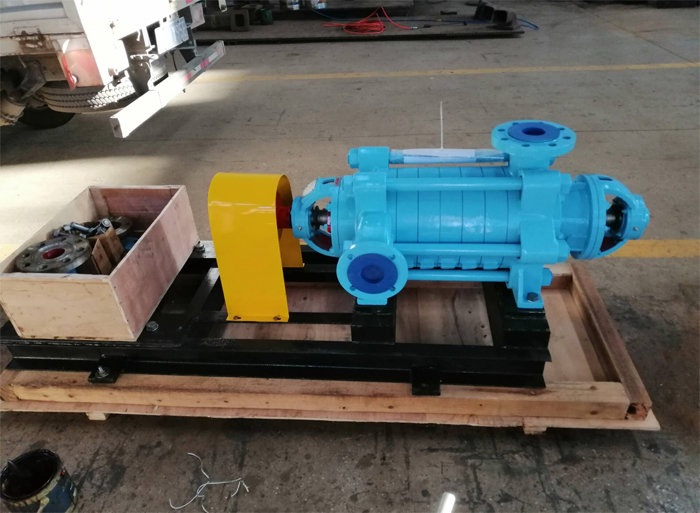

    Horizontal Ring Section Multistage Centrifugal Stainless Steel Water Pump DF25-50X6


    Description

    The D series Multistage Ring Section Centrifugal Stainless Steel Water Pump is a utility-grade, high-pressure, ring section pump with heavy duty, segmental ring, diffuser design. Axial thrust balance device with stacked rotor construction. Suitable for boiler feed pump and high building, long distance water transferring.

    Structure Design

    * By adopting precision casting and unique throttling and pressure reducing devices for auxiliary support pump vibration and noise are greatly reduced and service life is prolonged.


    * Excellent hydraulic model and design, unique first stage double suction impeller, forging casting, reliable anti-abrasive materials make sure the pump with excellent NPSH, pump work steady, no noise and users do not need to add preposition pump or inrease the height of the inlet chest.


    High operating reliability
    Using advanced hydraulic model, independent R&D enery efficient products, Good centering of impeller and guide vane channel and efficiency will not significantly drop as balancing disc wears and rotor components move forward. No leakage of balancing water reduces loss of volume and improves pump efficiency and pump efficiency is on average 2-5% higher than normal pumps.

    Service activities
    * Installation & Commissioning of complete mechanical and electrical installations on turnkey basis.
    * Repair & Maintenance - incidental service visits on location to breakdown repairs and maintenance on a 24-hour contract basis for products made by Sanchang or by any other manufacturer.
    * Original spare parts - we provide stock control of spare parts for groups of pumps (total care maintenance). We are able to respond quickly and flexibly thanks to the availability of our own foundry.
    * Training of our worldwide customers in the field of installation, operation and maintenance.

    Parameters of Multistage Centrifugal Stainless Steel Water Pump D25-50X3-12

    Flow Capacity15-28 m3/hDelivery Head144-618 m
    Inlet/Outlet Dia.DN80/DN80 mmWorking Pressure≤ 3.45 MPa
    Liquid Temperature0 - 80 ℃Driven ByElectric Motor / Diesel Engine
    Seal TypeMechanical seal / Gland packingLiquidClean water or similar
    Material of ConstructionCast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205

    Main Parts Configuration
    The Stainless Steel pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
    Parts NameClean WaterSewageHot WaterCorrosive LiquidOil Liquid
    Pump BodyCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    ShaftCast IronS.S420S.S420/42CrMoS.S630S.S420/40Cr
    Shaft SleeveCarbon SteelS.S420S.S304S.S316/S.S630/S.S2205S.S304/S.S316
    ImpellerCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    Wearing RingCast IronDuctile IronCast Steel/S.S304S.S304/S.S316/S.S2205S.S304/S.S316
    BearingChina Make/NSK/SKF/Customized
    SealsMechanical Seals/Gland Packing Seals
